Quick Pass Anti-tail Building Turnstile Gate For VIP Channel Entrance and Exit M3621

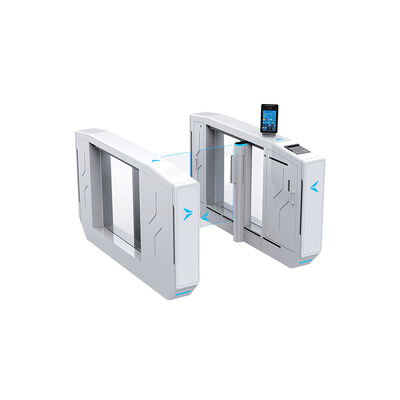

Name: Quick Pass Anti-tail Building Turnstile Gate For VIP Channel Entrance and Exit M3621
Brand: Turboo Automation Co., Ltd
SKU: M3621
Availability: InStock

Brand Name:	Turboo
Model Number:	M3621
MOQ:	1 PC
Price:	Negotiation
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001,FCC,RoHS,etc.

Size:

1800*210*1020mm

Material:

2.0 Mm Cold Roller With Power Coated

Pass Width:

600-900mm

Sensor:

Light Curtain 64 Points

Driver:

Servo Brushless 100W

Controller:

Servo Control

Power:

120W

Packaging Details:

Wooden case package

Supply Ability:

1000 units per month

Highlight:

Quick Pass anti-tail turnstile gate

VIP channel speed gate turnstile

M3621 building entrance turnstile

Product Description

Quick Pass Anti-tail Building Turnstile Gate For VIP Channel Entrance and Exit M3621

The M3621 Turnstile Gate is engineered for high-security super office building entrance and exit, featuring advanced access control technology and robust construction for reliable performance in demanding environments.

Functions & Features

Reasonable and reliable design, low noise, smooth operation and long service life
Anti-tail and anti-reverse pass functions
Card can be set with "memory" or "without memory" functions
Automatic reset function - gate automatically restores to locked state if not passed within set time
Infrared anti-clip function (anti-clip when gate is open or running)
Compatible with IC, ID card, scanning and face recognition systems
Two modes of operation: open or closed
Various working modes including two-way card reading and one-way card reading

Size Drawing

Technical Specifications

Parameter	Specification
Size	1800 × 210 × 1020 (mm)
Chassis	Top cover: 2.0mm cold roller with power coated Housing: 2.0mm cold roller with power coated Filling Panel: 10mm
Movement	Mechanism: Servo Speedway Door panel: 10mm Pass Lane: 600-900mm
Electronic Control	Control board: Servo standard board + driver board + logic board Motor: Brushless servo 40:1 100W IR sensor: Light Curtain 64 Points Air switch: 2P
Power Supply	24V 500W / 12V 150W / 12V 3A
Accessories	Connection cable: 5m 2×1.0m² RVV Network cable: 5m Both ends with crystal tips
Package	Pearl cotton: Foam liner Cardboard box: 1860 × 270 × 1080

Case Examples
