Flap Turnstile Gate
Created with Pixso. Flap Barrier Gate Speed Gate Popular Appearance 304 Stainless Steel

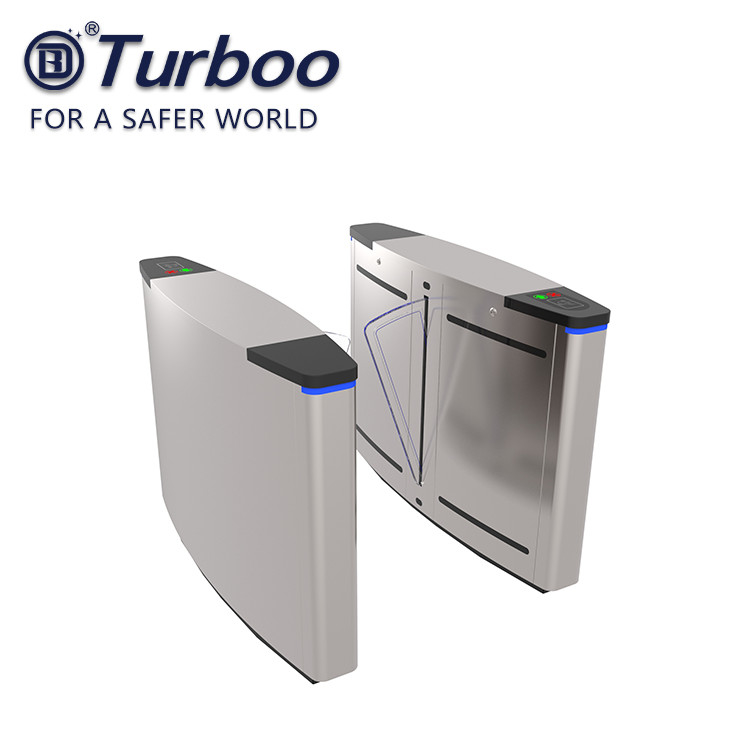

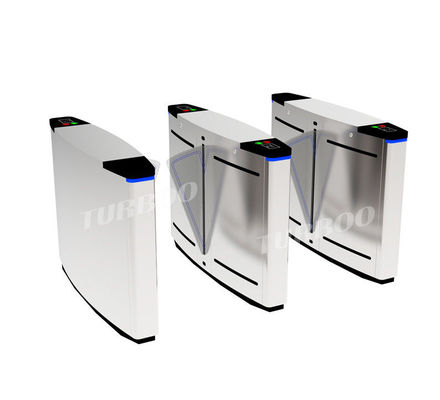

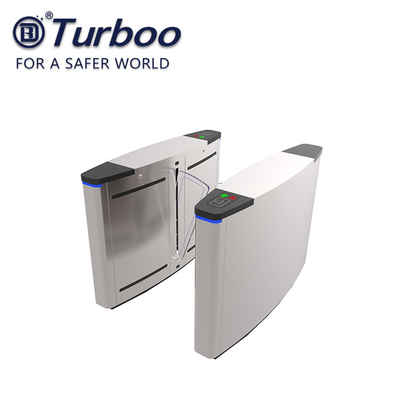

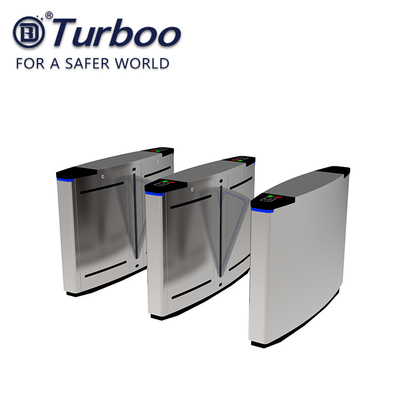

Flap Barrier Gate Speed Gate Popular Appearance 304 Stainless Steel

Brand Name: Turboo
Model Number: A221B
MOQ: 1 PC
Price: Negotiable
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, ISO9001
Size:
1410X300X990
Temperature:
-25~+70
Input:
100~240
Unlock Time:
0.2 Second
Marerial:
SUS304
Packaging Details:
Wooden case package
Supply Ability:
1000 units per month
Highlight:

waist height turnstile

,

security access gates

,

Stainless Steel Flap Barrier Gate

Product Description
Flap Barrier Gate Speed Gate Popular Appearance High Quality 304 Stainless Steel Optical pedestrian Manufacturer




Our advantage


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. More than 20,000 sq.m area plant, abundant stock, short delivery time;

3. Top 3 suppliers of raw material and spare aprts, like Baoxin and Japan Imported Stainless steel, Germany belts and motors, MEANWELL power supply etc.

4. Long Lifecycles: Brushless Servo Motors need least maintenance and provides more than 5,000,000 cycles MCBF.

5. High Intergrated: Compatible with most access control systems and credentials like RFID Cards,Barcodes,QR codes, Fingerprints, Face recognition,etc.

6. Easy Operation: Our own developed mainboard for easy operation and maintenance.

7. Wide Applications: widely applied for Banks,offices,Library,University and other high end places.

8. Timely technical support and after sales.



Features and Benefits

  1. Provide normally open / normally close to satisfy management request.
  2. Compatible with RF card readers, bar code readers, biometric readers, push button...

  3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.

  4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.

  5. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.

  6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer

Communication

• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer



Technical Data Unit A221B
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1410X300X990
Net weight including bars Kg 87
