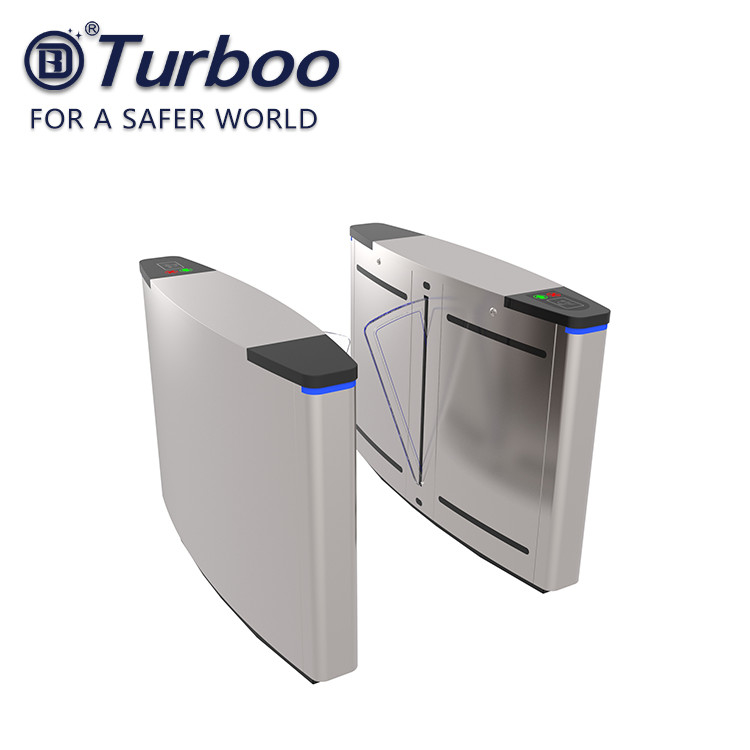

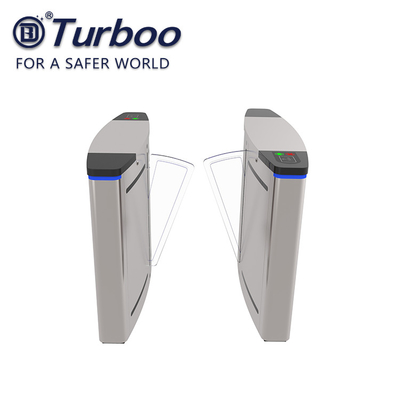

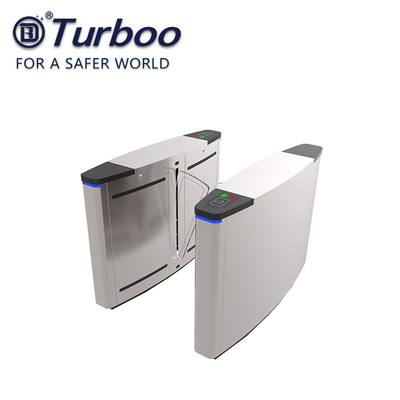

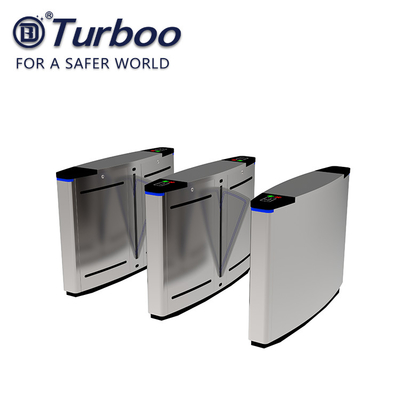

Semi - Automatic Flap Barrier Turnstile Gate Access Control Auto Reset Function
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Matiral | 304 Stainless Steel Or 316 Stainless Steel | Weight | 170kg |
|---|---|---|---|
| Thickness | Thickness Full 1.2mm Or Full 1.5mm | Passage Width | 550mm |
| Input | 220V,50HZ Or 110 V ,50HZ | Size | 1400*280*980mm |
| Package | Wooden Case Package | Driving Voltage | 24 V |
| High Light | drop arm turnstiles,security access gates,Semi Automatic Flap Barrier Turnstile |
||
Product Description
Flap Barrier Turnstile Semi-automatic Access Control Gate Optical Pedestrian
Features and Benefits
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
Our advantage
1.Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical antipinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Synchronization functions (for dual gate equipments)
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements
Product Description
Product description for Semi-automatic optical pedestrian flap turnstile access control gate
| Technical Data | Unit | A221A |
| Passage width | mm | <550 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 35 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1410X300X1005 |
| Net weight including bars | Kg | 87 |
