304 Stainless Steel Swing Gate Automatic Flap Barrier Gate Biometric System

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number K249
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 1400x280x980mm Material 304 Stainless Steel
Input 220V ,50Hz Gross Weight 67kg
Temperature -25~+70℃ Transit Speed 35 Persons/min
High Light

waist height turnstile

,

drop arm turnstiles

,

304 Stainless Steel Swing Gate

Leave a Message
Product Description
Super Barrier Gate 304 Stainless Steel Flap Barrier,Automatic Swing Flap Barrier Gate Biometric System Access Control

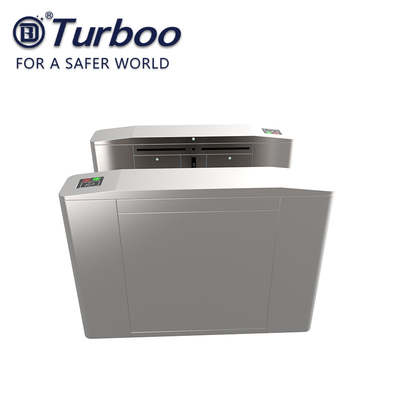

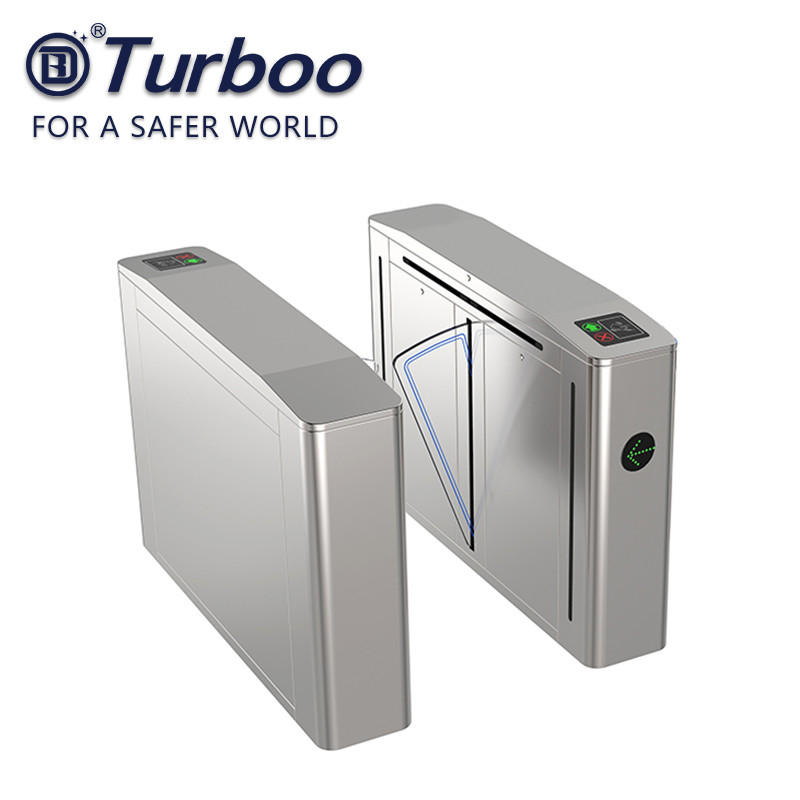

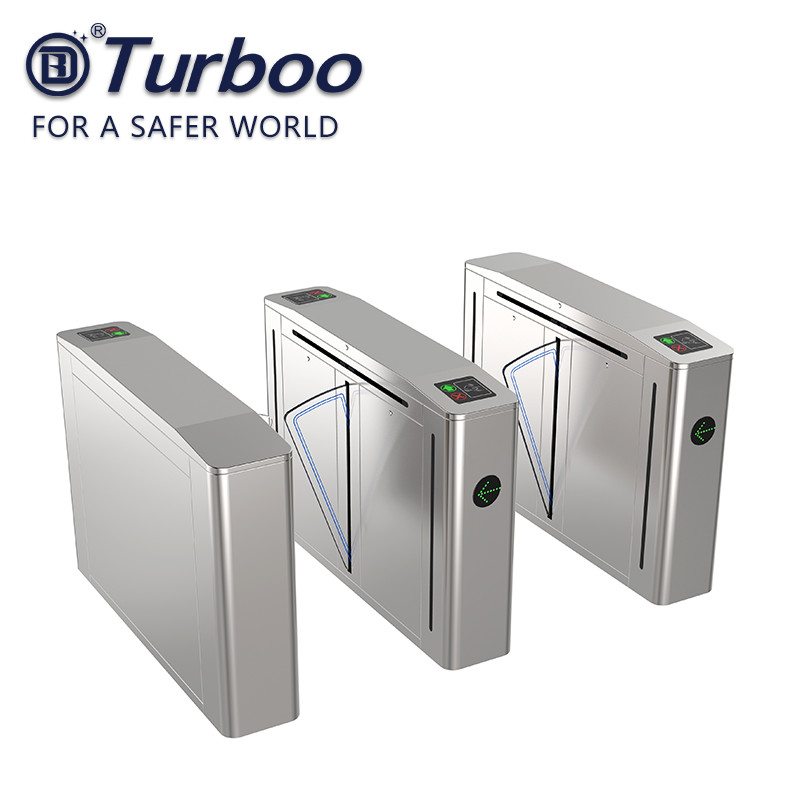

Flap barrier



Quality mechanical structure design, high-class special steel alloy precision machining, standard anti-corrosion fasteners,strong core part of the machine,strong power.

Our reasonable design will make the whole system work in good condition and make its life durable.

Different working modes can be set through the Main Control Board,there is a LCD screen will show relative information,the Pedestrian Gate Flap Barrier main control board can be customized according to customers' request.It is made of transparent acrylic,both flaps will stretch and shrink synchronized,it will provide free access in case of power off,the flaps will automatically shut when power is on.The Acrylic Flaps will work stably with quality motor.



Features and Benefits



1. Problem self-recovery and corrective measure ability, convenient maintain and adjus

2. Motherboard with high clean sound read chips which could broadcast in light of user’s requirment

3. Human base model indication function, real time displaying, improve the passing rate and convenient maintain

4. Automatic counting indicating passenger’s number

5. Resetting automatically, auto cancel the pass through and closed barrier in case nothing pass the channel in a setting time

6. Anti pinch function with UPS to satisfy firefighter requires, ensure user’s safe

7. Break-in ,tail ,over-pass and reverse alert function in order to keep orderliness and effective manage

8. Standard input/output port, meanwhile leaving a port space for installing RS485 communication, connect and manage the integrated systems through the remote PC.

9. Super combination capacity, adjustable model on site , adjustable speed of barrier slide ,open signal with memory or with out set function


Model
K249
Size
1400x280x980mm
Material
1.2mm thickness SUS304
Pass Width
550mm
Passage direction
Single directional/Bi-directional
Pass rate
30-35 persons/minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
30%~95%
Working temperature
-40℃~+70℃
Working environment
Indoor
Communication interface
RS485, Dry contact
Mechanism
Brushed Motor+Germany Belt
Infrared sensor
5 pairs
MCBF
5,000,000 Cycles
Application
Station, Sea ports, GYM, Shool, etc
