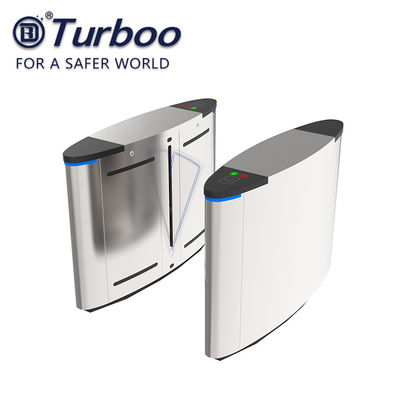

Multiple Sensors Electronic Turnstile Gates For Fast Lane Security Metro Station

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number H203
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Material 304 Stainless Steel Or 316 Stainless Steel Thickness Full 1.5-2.0mm
Size 1410*340*1005 Mm Passage Width ≤550mm
Working Temperature -25~+70℃ Testing 3million ,no Fault
Input 220V,50HZ Or 110 V ,50HZ Driving Voltage 24 V
High Light

security entrance systems

,

turnstile barrier gate

Leave a Message
Product Description

Electronic Turnstile Gates Multiple sensors Fastlane security metro station flap barrier gate




Features and Benefits

1. The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
2. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
3. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
4. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
5. The bicycle delay function: prevent the gate from hitting the bicycle;
6. Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
7. The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
8. Various control functions: external button, remote control, bar code, IC or ID, etc. 9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
9. Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.

Communication
• Dry contact relay with 12 volt or 24 volt pulse
• Rs485, or Tcp-lp communication with computer

Product description

Technical Data Unit H203
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1410X340X1005
Net weight including bars Kg 75
Optional devices 1.Fingerprint reader 2.Face recognition
  3.Card collector 4.Card reader
  5.2D scanner 6.Palmprint reader
