High Security Access Control Turnstile Gate / Flap Barrier Turnstile For Park
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 1200x280x980mm | Material | 304/316 Stainless Steel |
|---|---|---|---|
| Input | 220V ,50Hz | Package | Wooden Box |
| Temperature | -25~+70℃ | Transit Speed | 35 Persons/min |
| Reliability Of The Core | 3 Million ,no Fault | Time Needed For Opening | 0.2 Seconds |
| High Light | security entrance systems,turnstile barrier gate,Park Flap Barrier Turnstile |
||
Product Description

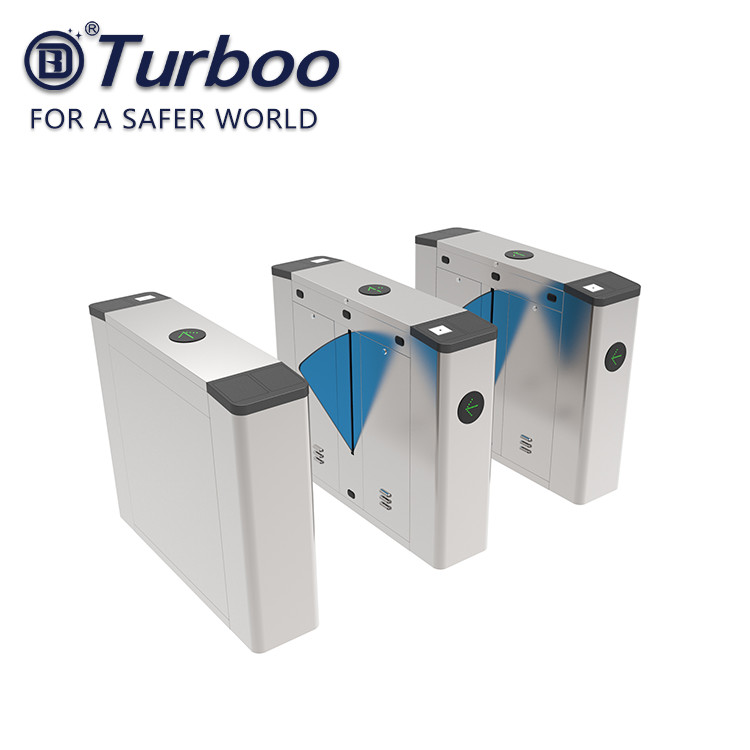

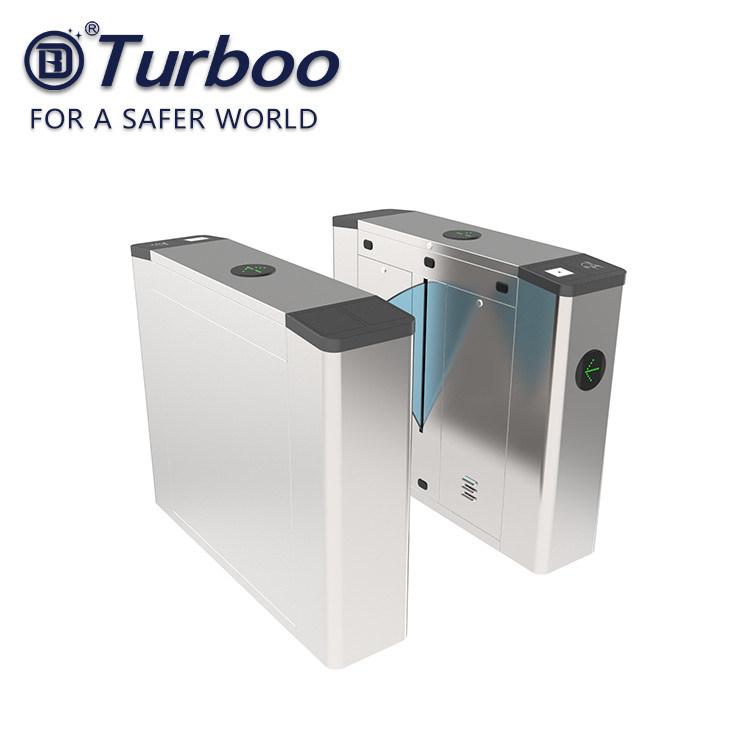

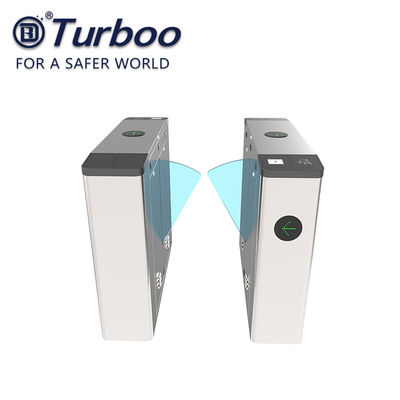

Electronic Turnstile Gates High Security Access Control Turnstile Gate Flap Barrier Gate In Ball Park
Product Description
The beautiful Speed Gate Speed1 is the thinnest motorized barrier optical turnstile available. The Speed1's slim cabinets are only 120mm wide (about the width of your hand). The turnstile's rounded lines and clear materials enhance the look of any lobby or entrance area and provide excellent sight lines for attendants or guards in case of security events or emergencies
The Speed1's compact floor footprint allows more lanes to fit in a smaller space. Center expansion cabinets have the same dimensions as end cabinets, allowing space saving multi-lane configurations. The Speed1 optical turnstile maintains the same cabinet dimensions even when providing ADA-compliant passage widths. Barrier panels may be ordered in three heights (900mm, 1200mm or 1800mm) to best match operational requirements.
OPERATING MODES
1. Single passage in the set direction
2. Bi-directional single passage
3. Free passage in the set direction
4. Always free or locked
MATERIALS
1.. Housing and arm: Made in stainless steel AISI 304 o AISI316.
2. PC flap and moulding machine core
| Technical Data | Y248 |
| Dimension | 1200x280x980mm |
| Unlock time | 0.2s |
| Passage width | ≤550mm |
| Throughput rate | 35p/m |
| Power supply | 100~240v |
| Operational voltage | 24v |
| Max power consumption | 35w |
| Frequency | 50~60hz |
| Prectection level | 44ip |
| Working temperature | -25~70 °C |
| Electro-magnetic drive | DC |
| Net weight | 63kg |
| Input | 12v dry contact |
