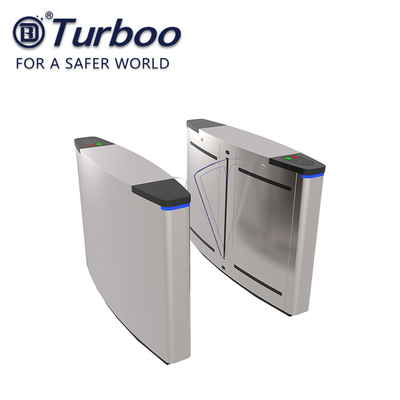

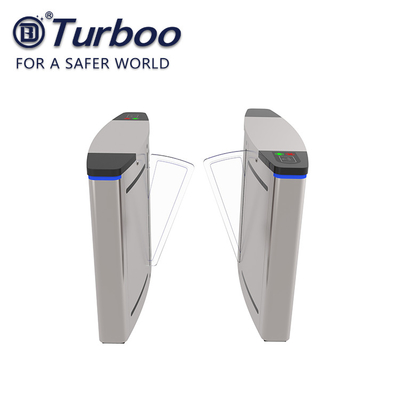

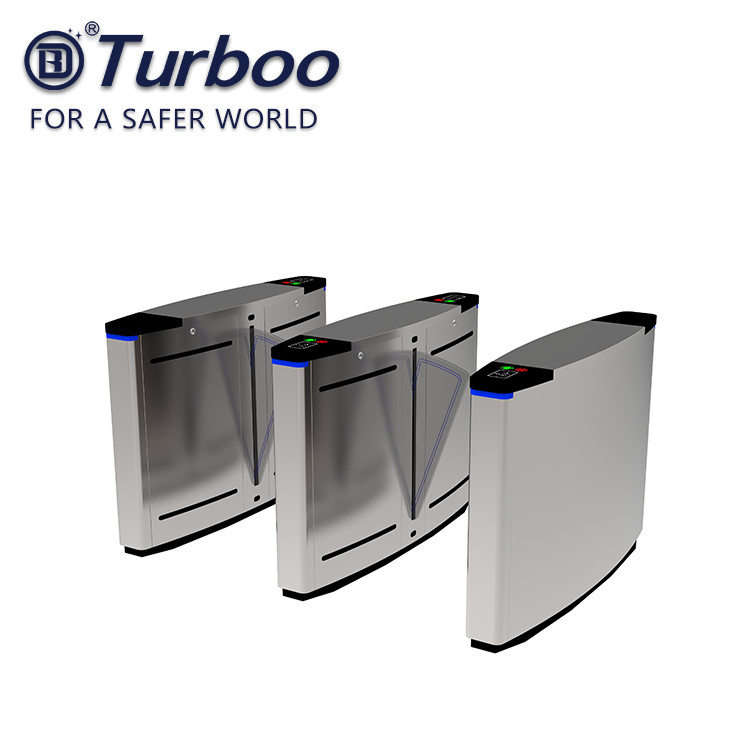

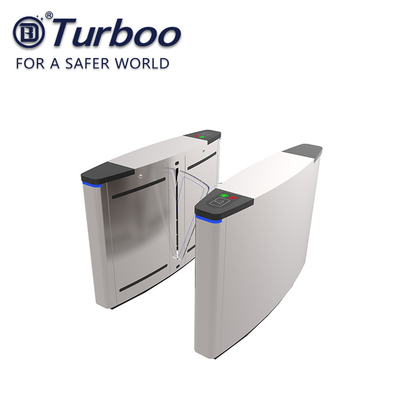

Retractable Biometric Flap Access Control Turnstile Gate Malfunction Self - Detection

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number A221B
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 304 Stainless Steel Or 316 Stainless Steel Thickness Full 1.2mm Or Full 1.5mm
Size 1400X300X1050 Passage Width ≤550mm
Testing 3 Million No Fault Input 220V,50HZ Or 110 V ,50HZ
Driving Voltage 24 V Environment -25~+70
High Light

biometric security system


sliding security gates


Self Detection Access Control Turnstile Gate

Leave a Message
Product Description

Retractable biometric flap gate barrier turnstile for access control system




Features and Benefits


1. Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.

2. Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.

3. Malfunction self-detection, which is easy for operation and maintenance.

4. Operational mode can be set up through the built-in menu on the control panel.

5. Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.

6. Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.

7. Flaps reset to close position when power resume.

8. Flaps reset to lock position when access time expire.

9. Prevents Invalid/Tailgate/Wrong direction access.

10. LED Array indication for access granted/denied.




• Dry contact relay with 12 volt or 24 volt pulse

• Rs485, or Tcp-lp communication with computer

Wider Opening:
compared to tripod turnstile, flap barrier allow wider opening and more comfortable passage for pedestrian of any size. User can bring along luggage or big parcel to pass through. Flap barrier can also allow user on wheel chair to pass through.
Faster Opening:
Flap barrier support up to 0.5 sec opening/closing time. This allow higher pass throught traffic rate and effectively reduce long queue in front of entrance / exit door during peak hour.
Designed to be safe:
Flap will only close after all IR sensor confirmed that the peestrian has finished passing through. This ensure flap will not crush onto a pedestrian.
During power failure, flap will automatically open by itself to allow free passage for emergency escape. Flap will automatically close back when power resume.
Inteligent sensor will auto reverse the flap if there is a sudden incoming obstacle while the flap is closing. Flap will also auto reverse if there is something blocking the flap to avoid motor overload and damage itself.
Auto Close Timer:
Flap will auto close if there is no pedestrian passing through after the delay time elapsed. This will avoid unauthorized user from sneaking into the building when flap was opened wrongly. The delay time can be preset in control panel.
Alarm Detection:
Built-in high sensitivity infrared photocell to detect unauthorized and abnomal access. Alarm will sound and red light to alert security guard. Flap shall remain securely locked it it did not receive any authorized signal from access control system.
Technical Data Unit A221B
Passage width mm <550
Throughput rate p/m 35
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 35
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1410X300X1050
Net weight including bars Kg 87
