Access Control Turnstile Gate
Created with Pixso. Half Height Safety Access Control Turnstile Gate , Flap Barrier Gate Stainless Steel

Half Height Safety Access Control Turnstile Gate , Flap Barrier Gate Stainless Steel

Brand Name: Turboo
Model Number: H203
MOQ: 1 PC
Price: Negotiate
Delivery Time: 7 days
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
Guangdong China
Certification:
CE ISO
Product Size:
1400*300*990mm
Pass Width:
<=550mm
N.W.:
62kg
Thickness:
1.2mm
Material:
1.2mm SUS304 Hairline 400#
Input Voltage:
100-240V
Pass Rate:
35-40 Persons/minute
Communication Interface:
RS485,Dry Contact
Operating Time:
0.2 Seconds
Infrare Senser:
5 Pairs
Packaging Details:
Wooden Case
Supply Ability:
1000 units per month
Highlight:

security access gates

,

biometric security system

,

Half Height Flap Barrier Gate

Product Description

Stainless Steel Half Height Safety Access Control Turnstile Gate Flap Barrier Gate Pedestrian Gate









FEATURES AND BENEFITS:



• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• Display has been in use for statistics and numbers

• With voice and strobe light alerts

• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

• The barrier can be set to delay closing in 1-60s after a valid card-reading



Application:



High class communities, intelligent buildings, hotels, subway station, metro station, etc.





Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use.

5. Germany “Optibelt” and American “Gates” is the belt we are using now.



Model Number: H203
Product Size: 1400*300*990mm
Pass Width: <=550mm
Net Weight: 62kg
Thickness: 1.2mm
Material: SUS304,Polish 400# Snow Line
Top cover Material: Acrylic+2.0mm SUS304
Arm Material: 12mm Transparent Acrylic
Driver:  Brushed Motor
Infrared Sensor: 5 pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
MCBF: 5,000,000 cycles





OPERATING MODES:


• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked

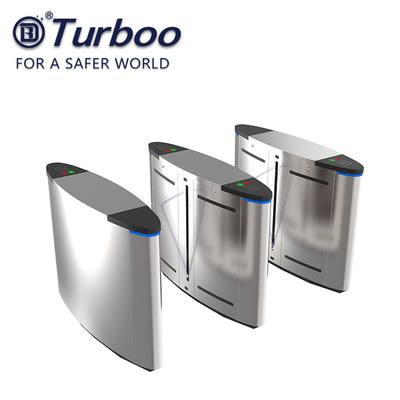

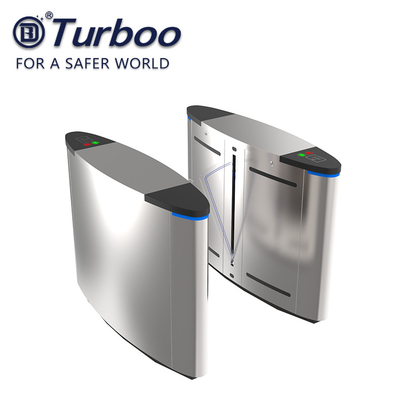

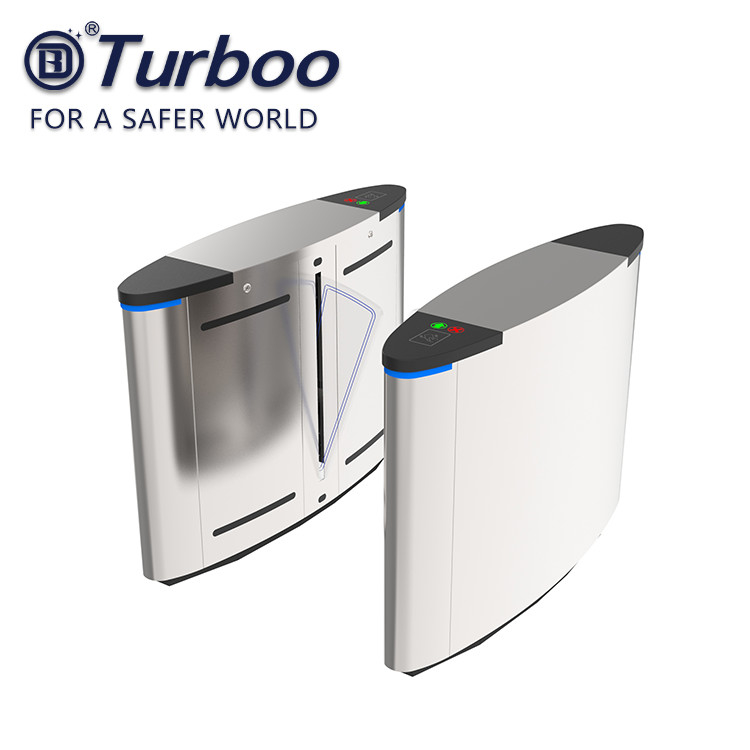

Half Height Safety Access Control Turnstile Gate , Flap Barrier Gate Stainless Steel 0Half Height Safety Access Control Turnstile Gate , Flap Barrier Gate Stainless Steel 1Half Height Safety Access Control Turnstile Gate , Flap Barrier Gate Stainless Steel 2
