Compact Design Flap Barrier Turnstile Gate Mechanical Access Control Entrance Security

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number L229
Minimum Order Quantity 1 PC
Price Negotiate
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Dimension 500*280*960mm Unlock Time 0.2s
Pass Rate 35p/m Pass Width 550mm
Input Voltage 110V-240V Driving Voltageamete 24V
Environmentply -20~+70 Power 35W
Input Signaal Dry Contact
High Light

waist height turnstile

,

security access gates

Leave a Message
Product Description

Mechanical access control entrance security barrier turnstile gate





All turnstile models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorized entries, The unique dropping arm feature provides a fail safety solution in case of an emergency or power failure, providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The turnstile creates a secure environment in. for example, a reception area. Our turnstiles are used in different applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.



Model number

L229

Dimension

500*280*960mm

Unlock time

0.2s

Pass rate

35p/m

Pass width

550mm

Input voltage

110V-240V

Driving voltage

24V

Environment

-20~+70

Power

35W

Input signal

Dry contact



Features and Benefits

1. Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
2. A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
3. Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
4. Full-auto mode: The passenger pushes the arm at a little strength after reading card, and the arm will automatically rotate forward by motor power until the arm arrives in home position.
5. Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
6. Single or bi-directional function in mechanical and electrical versions.
7. Automatic reset of barrier arms after each passage.
8. Cable or wireless remote control panel key override control for emergency situations. Automatically arm drop down when power off or emergency.
9. Adjustable time out delay

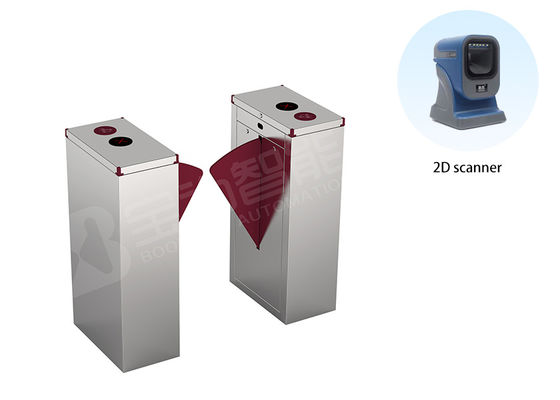

Compact Design Flap Barrier Turnstile Gate Mechanical Access Control Entrance Security 0

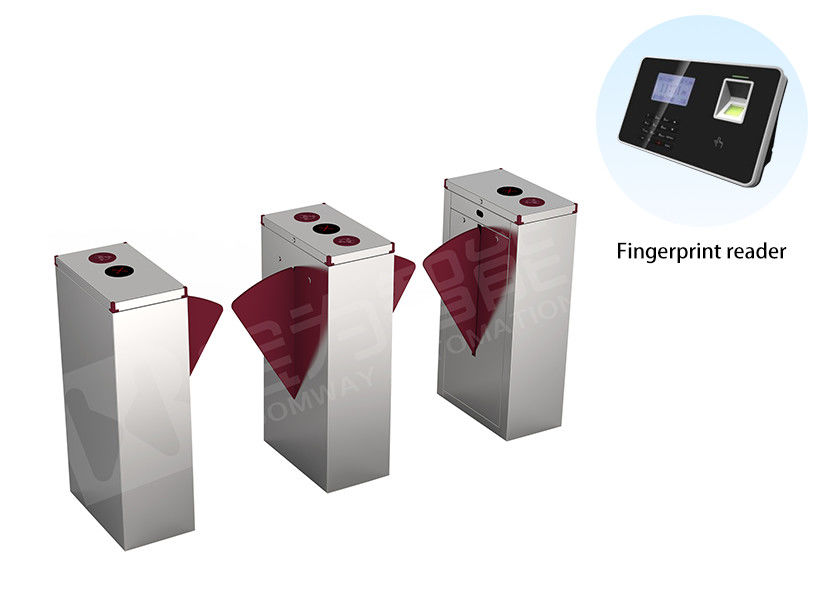

 Compact Design Flap Barrier Turnstile Gate Mechanical Access Control Entrance Security 1
