| Brand Name: | Turboo |
| Model Number: | H203 |
| MOQ: | 1 PC |
| Price: | Negotiate |
| Delivery Time: | 7 days |
| Payment Terms: | T/T, L/C |

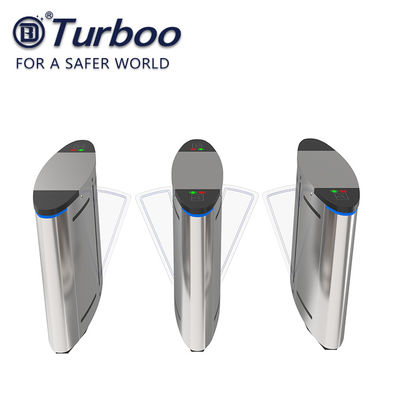

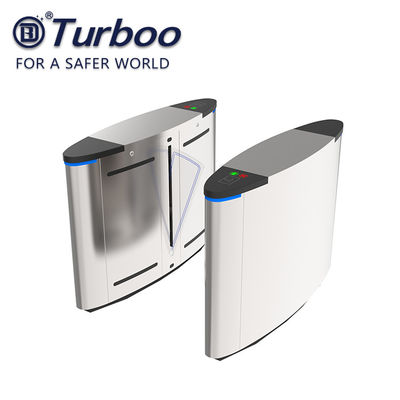

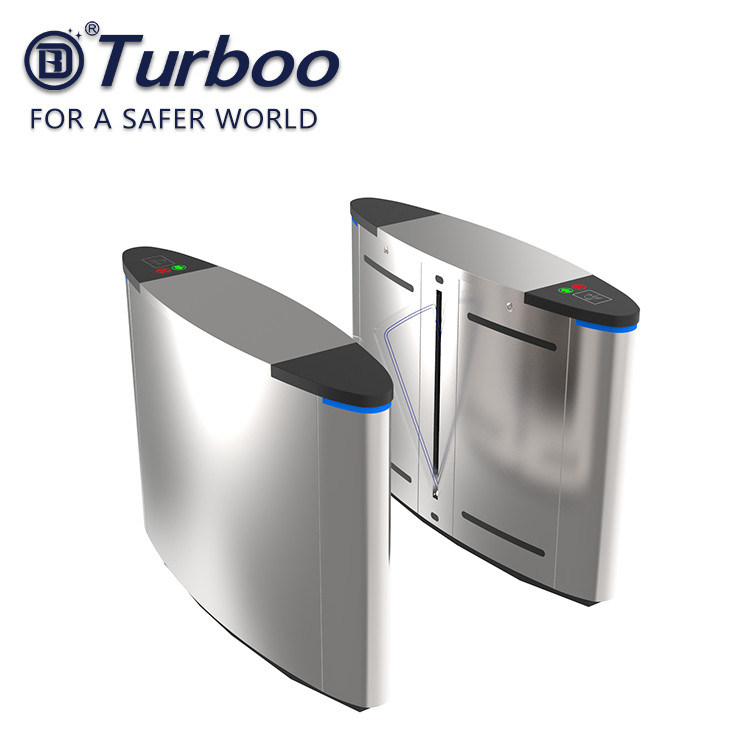

RFID Flap Barrier Turnstile Half Height Flap Barrier Gate Access Control Barrier Gate for Office Building 100-240V 35W
FEATURES AND BENEFITS:
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
Application:
High class communities, intelligent buildings, hotels, subway station, metro station, etc.
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now
| Model Number: | H203 |
| Product Size: | 1400*300*990mm |
| Pass Width: | <=550mm |
| Net Weight: | 75kg |
| Thickness: | 1.2mm |
| Material: | 1.2mm SUS304 Hairline 400# |
| Top cover Material: | Acrylic+2.0mm SUS304 |
| Arm Material: | 15mm Transparent Acrylic+LED Light |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5 pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000 cycles |
OPERATING MODES:
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
Video
Video
Video
Video
Video
Video
Video
|
| Brand Name: | Turboo |
| Model Number: | H203 |
| MOQ: | 1 PC |
| Price: | Negotiate |
| Packaging Details: | Wooden Case |
| Payment Terms: | T/T, L/C |
RFID Flap Barrier Turnstile Half Height Flap Barrier Gate Access Control Barrier Gate for Office Building 100-240V 35W
FEATURES AND BENEFITS:
• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading
Application:
High class communities, intelligent buildings, hotels, subway station, metro station, etc.
1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now
| Model Number: | H203 |
| Product Size: | 1400*300*990mm |
| Pass Width: | <=550mm |
| Net Weight: | 75kg |
| Thickness: | 1.2mm |
| Material: | 1.2mm SUS304 Hairline 400# |
| Top cover Material: | Acrylic+2.0mm SUS304 |
| Arm Material: | 15mm Transparent Acrylic+LED Light |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5 pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000 cycles |
OPERATING MODES:
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
