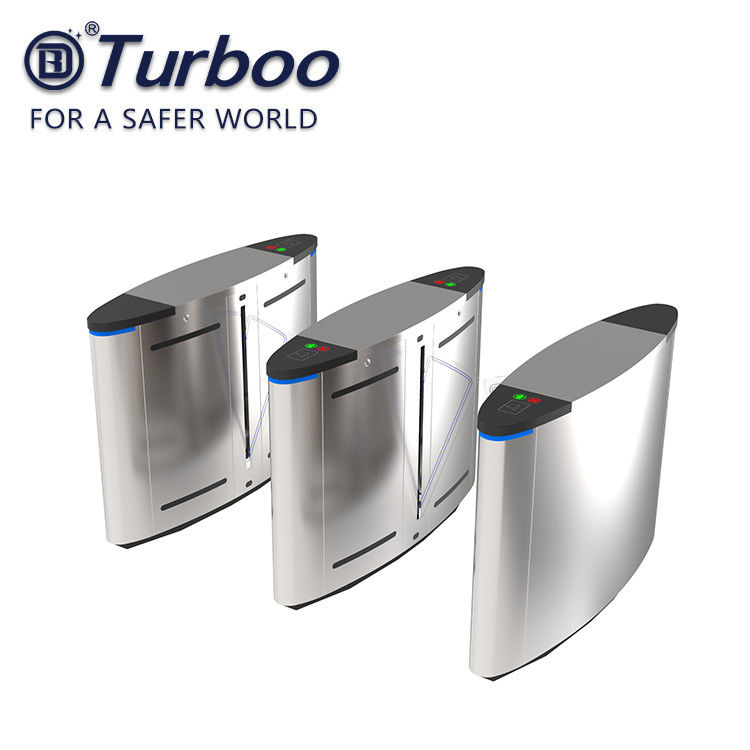

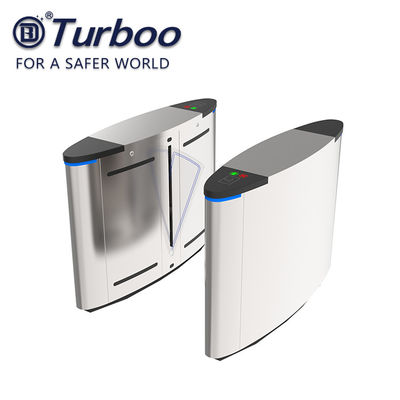

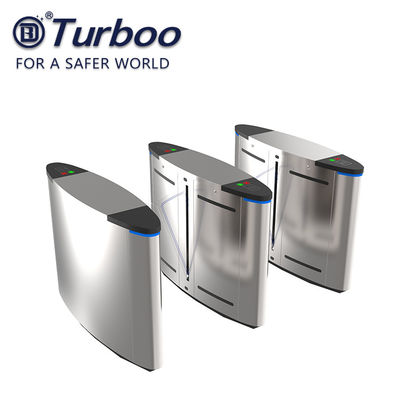

SUS304 Facial Recognition RFID Reader Flap Barrier Turnstile / Half Height Barrier Gate

Place of Origin Guangdong China
Brand Name Turboo
Certification CE ISO9001
Model Number H203
Minimum Order Quantity 1 PC
Price Negotiate
Packaging Details Wooden Case
Delivery Time 7 days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Product Size 1400*300*990mm Pass Width <=550mm
Working Voltage 24V Material 1.2mm SUS304 Hairline 400#
Input Voltage 100-240V Pass Rate 35-40 Persons/minute
Operating Time 0.2 Seconds MCBF 5,000,000 Cycles
Infare Sensor 5 Pairs Working Temperature -25 To +70 ℃
Motor Brushed Motor Belt Germany Belt
High Light

waist height turnstile

,

security access gates

Leave a Message
Product Description

SUS304 Facial Recognition RFID Reader Flap Barrier Turnstile Half Height Barrier Gate 100-240V 35W Security Turnstile




FEATURES AND BENEFITS:

• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function
• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping
• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading
• The barrier can be set to delay closing in 1-60s after a valid card-reading

Application:

High class communities, intelligent buildings, hotels, subway station, metro station, etc.



Our advantage:


1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.
4. We take 3M glue imported from American instead of the glass glue which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using now.



Model Number:H203
Product Size:1400*300*990mm
Pass Width:<=550mm
Net Weight:75kg
Thickness:1.2mm
Material:1.2mm SUS304 Hairline 400#
Top cover Material:Acrylic+2.0mm SUS304
Arm Material:15mm Transparent Acrylic+LED Light
Driver:Brushed Motor
Infrared Sensor:5 pairs
Pass rate:35-40p/m
Power Supply:100-240V(AC)
Operational Voltage:24V(DC)
Frequency:50-60hz
Working Temperature:-25 to +70 ℃
MCBF:5,000,000 cycles



OPERATING MODES:
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
