550mm Width SUS304 Flap Barrier Gate Access Control Indoor Outdoor Use

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number E242
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden box
Delivery Time 7 days
Payment Terms L/C, T/T,
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Size 1200x280x960mm Weight 45.00Kg
Material SUS304 1.0mm Thickness Arm Material PC
Mechanism Brushed Motor+Germany Belt Input 100-240V,50/60HZ
Working Voltage 24V Infrared Sensor 4 Pairs
Pass Width 550mm MCBF 5,000,000 Cycles
Pass Rate 30-35 Persons/minute Operating Time 0.2 Seconds
Communication Interface RS485,Dry Contact
High Light

550mm Width Flap Barrier Gate


0.2 Seconds Flap Barrier Gate


SUS304 pedestrian turnstile gate

Leave a Message
Product Description

550mm Width 304 Flap Barrier Gate High Security Flap Turnstile Access Control Indoor Outdoor Use



pedestrian turnstile gate are widely used nowadays in places ,where large pedestrian flows exist and require.

A fast, safe and effective  passing. Usually  wheel chair  users, luggage or trollers need to be Coonsidered. Thus,  Unique designed mechanism is developed with Germany made belt to ensure 5,000,000 or longer lifecycles .


Product Model







1.0mm sus 304  hairline 400

Arm Material



Germany Imported belt+China Motor

Pass width


Pass rate

35 Persons/minute

Power supply



>5,000,000 cycles



  • The whole system runs smoothly, long-life performance, high operation dependability and fast response.

  • Alarm function, in case of illegal intrusion and reverse intrusion.

  • Infrared sensor to prevent pinch pedestrians.

  • Anti-breakthrough function. The gate is locked automatically until opening signal received.

  • Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.

  • LED indicator.

  • Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

  • When power off, optical turnstile will open automatically, which is complying with fire safety requirements.




1. The flap barrier gate is equipped with international standard electrical interface, can be easily integrated with other

R/W device, also can be controlled and management through remote supervision computer

 2. Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating

Attempts, together with anti-strike function to protect pedestrian

3. LED gate direction indicator that displays the current operational state to pedestrian. Green

Arrow for entry free, Red Cross for passage locked.

4. Can open the turnstile by two input signals (signals can be input by access controller, button or

Other equipments) Gating system

5. Provide audible sound prompt and information display function.

6. The flaps will open automatically during power interruption and recover N/C mode after power on (optional)

7. The barrier can be set to delay closing in 1-60s after a valid card-reading.

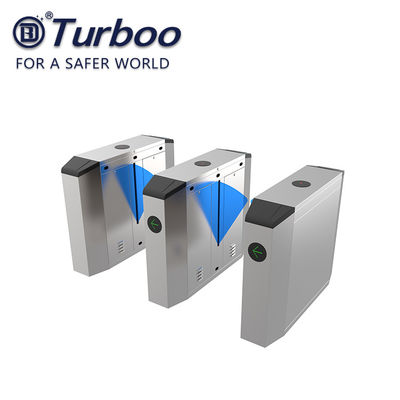

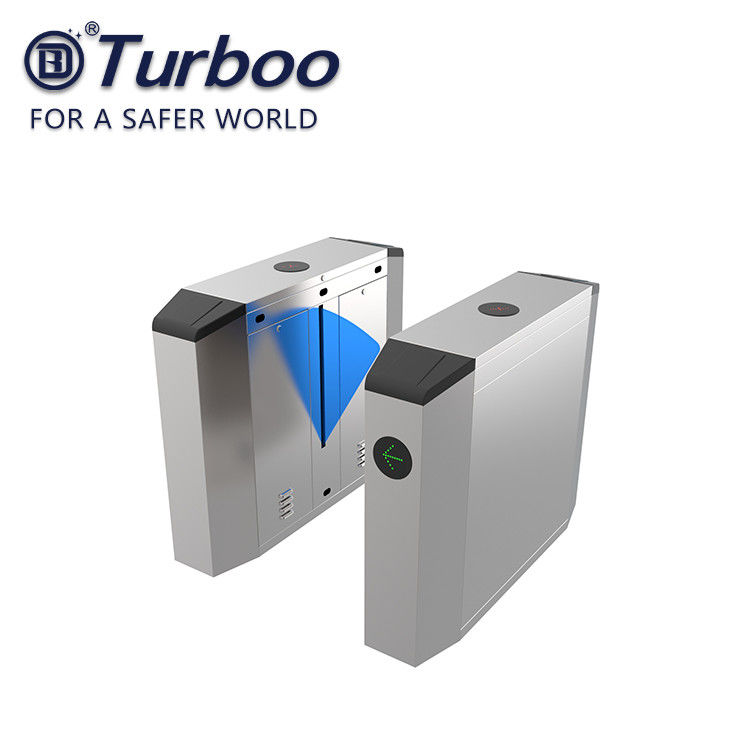

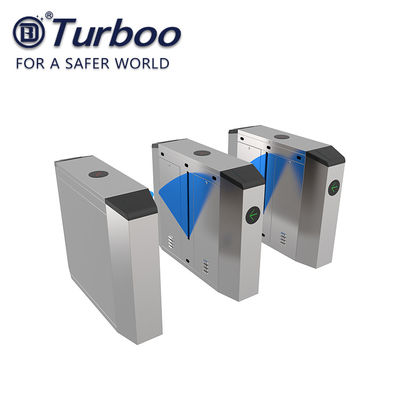

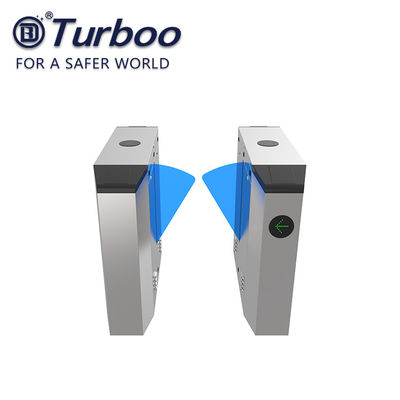

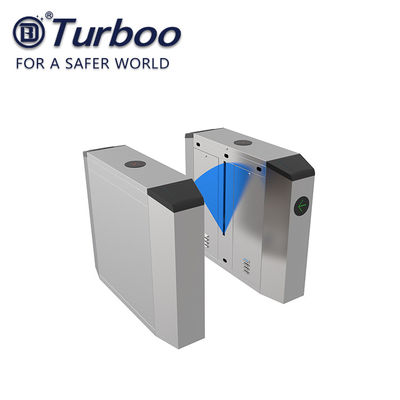

550mm Width SUS304 Flap Barrier Gate Access Control Indoor Outdoor Use 0550mm Width SUS304 Flap Barrier Gate Access Control Indoor Outdoor Use 1550mm Width SUS304 Flap Barrier Gate Access Control Indoor Outdoor Use 2
