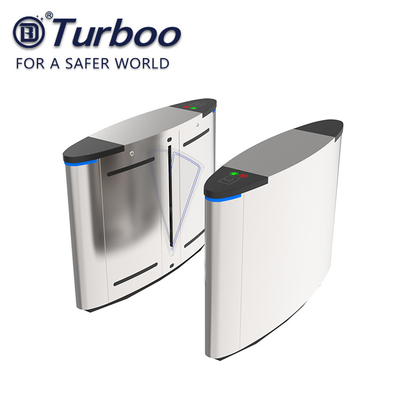

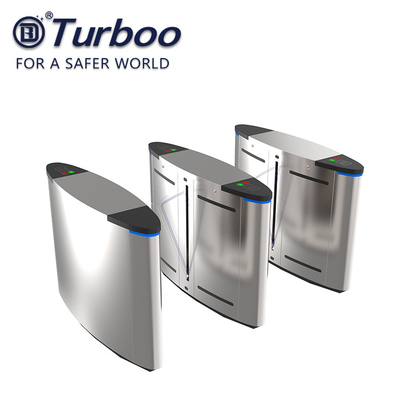

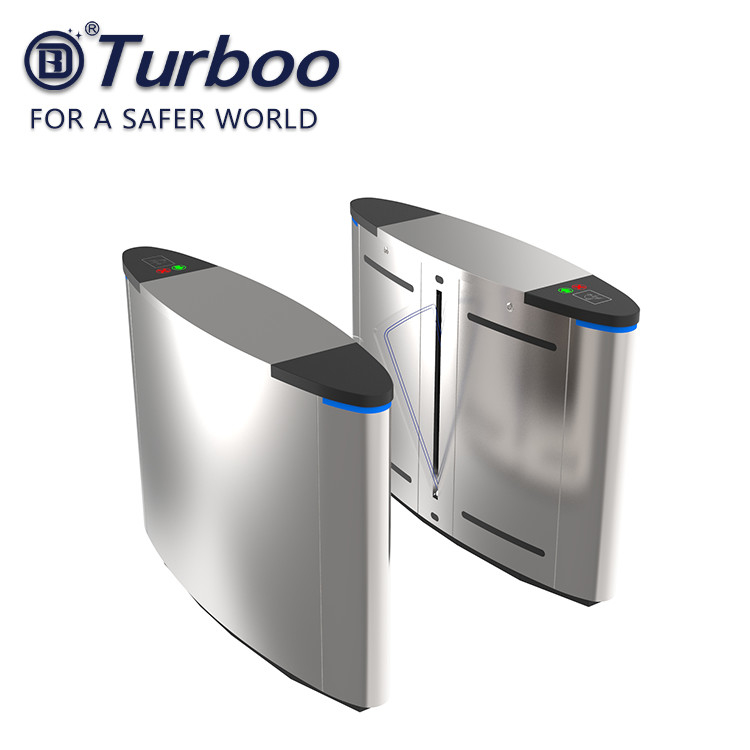

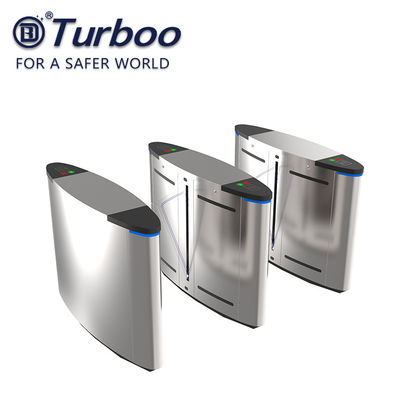

High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection

  • High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection
  • High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection
  • High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection
  • High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection
Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number H203
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden case
Delivery Time 7-15 working days
Payment Terms L/C, T/T,
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Body Material 1.2 Mm SUS 304 Stainless Steel Pass Width <=550mm
Pass Rate 35-40 Person/minute Operating Time 0.2s
In Put 100-240V; 50/60HZ Working Voltage 24V
Communication Interface RS485,Dry Connection Motor Brushed
Infrared 5 Pairs Size 1400*300*990mm
High Light

Dry Connection Flap Barrier Gate

,

0.2s Flap Barrier Gate

,

SUS 304 face recognition barrier gate
Leave a Message
Product Description

High security face recognition barrier gate access control turnstile Flap Barrier Turnstile







1. Discroption:



The H203 is an attractive flap turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.





2. Parameter:



Model Number: H203
Product Size: 1400*300*990mm
Pass Width: <=550mm
Net Weight: 75kg
Body material 1.2mm stainless steel
Top cover Material: 8mm Acrylic+ 2.0mmSUS304 Hair Line stainless steel
Wing Panel Material: 15mm Transparent Acrylic
Driver: Brushed motor
Infrared Sensor: 5 pairs
Pass rate: 35-40p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Power Supply 10K 30W
Frequency: 50-60hz
Working Temperature: -25 to +70 ℃
Access Controller 24V 120W Controller box, Tidy wiring
MCBF: 5,000,000cycles




3. Features:

1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function.
2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage.
3.Display has been in use for statistics and numbers
4.A combination of infrared sensors and police anti-illegal entry into pedestrian access, the protection of pedestrians access smooth and the prevention of the channel following.




4. Operating Mode:



1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked



High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection 0High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection 1High Security Flap Barrier Gate 0.2s Face Recognition Barrier Gate RS485 Dry Connection 2
