Dry Contact Pedestrian Flap Turnstile Gate Access Control Sliding Gate

Place of Origin Guangdong China
Brand Name Turboo
Certification CE ISO9001
Model Number A602
Minimum Order Quantity 2 PC
Price Negotiate
Packaging Details Wooden Case
Delivery Time 7 days
Payment Terms T/T, L/C
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Size 1400*300*1020mm Material 1.5mm/1.2mm SUS304
Pass Width 550mm Working Voltage 24V
Input Voltage 100-240V Pass Rate 35 Persons/minute
MCBF 5,000,000 Cycles Drive Unit Brushed Motor
Communication Interface RS485,Dry Contact Infrare Sensor 5 Pairs
IP >44 Working Temperature -20 To +70 ℃
High Light

550mm Flap Turnstile Gate


Infrare Sensor Pedestrian Turnstile Gate


Dry Contact Pedestrian Turnstile Gate

Leave a Message
Product Description

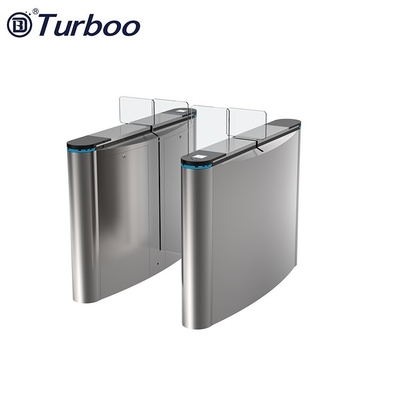

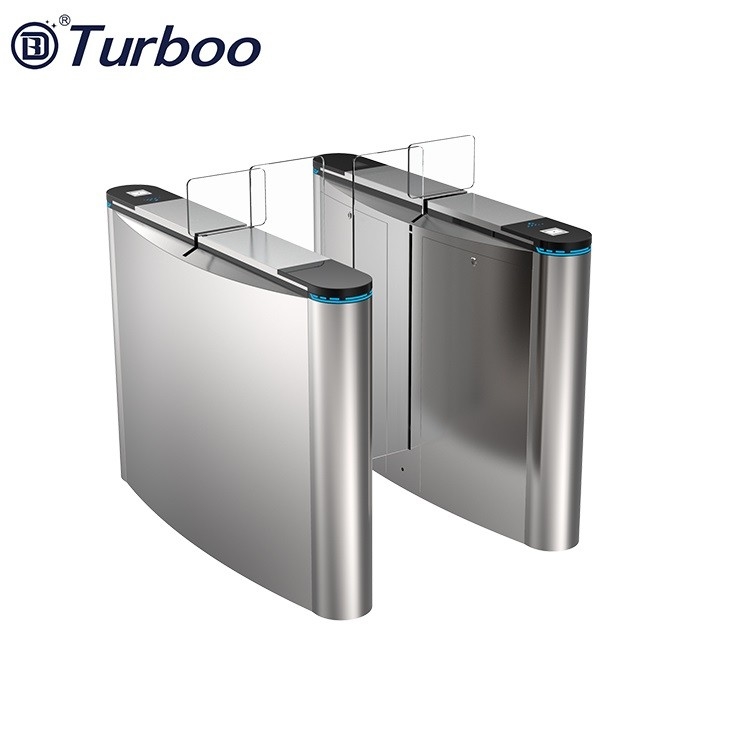

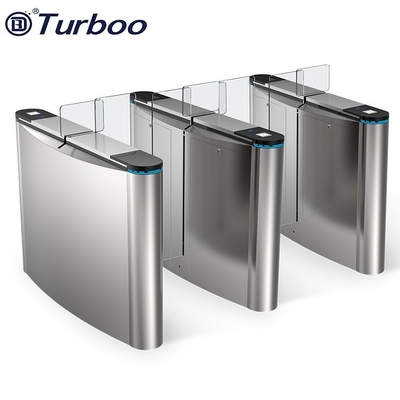

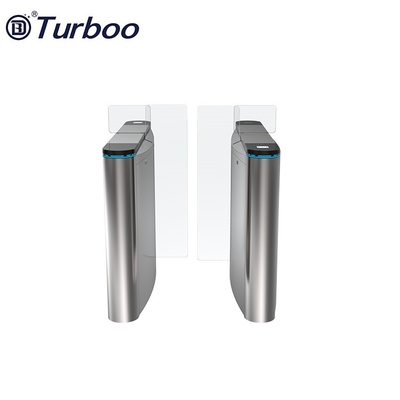

Dry Contact Pedestrian Flap Turnstile Gate Access Control Sliding Gate



Flap Turnstile Gate Features and benifits


• Flap turnstiel gate can be set to delay closing in 1-60s after a valid card-reading

• Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

• A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

• With voice and strobe light alerts

• A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

• Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

• Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

Flap Turnstile Gate Application


1.Bus station, school,factory entrance and exit management

2.Tourist attraction Ticketing system

3.Time attendance, access control, consumption management for Building office

4.Special access management system


Our advantage

1. 90% of production processes are developed by ourselves so we can control the costs and provide the competitive price correspondingly.

2. We use Baoxin Stainless steel, the best brand in China.

3. Our power supply is the best brand from Taiwan “Mingwell” or “Fujia”.

4. We take 3M glue imported from American instead of the glass glue which other counterparts use.

5. Germany “Optibelt” and American “Gates” is the belt we are using now.


Model Number: A602
Product Size: 1400*300*1020mm
Pass Width: 550mm
Thickness: 1.5mm/1.2mm
Top cover Material: 1.5mm SUS304
Arm Material: 10mm Tempered Glass
Driver: Brushed Motor
Infrared Sensor: 5 pairs
Pass rate: 35 p/m
Power Supply: 100-240V(AC)
Operational Voltage: 24V(DC)
Frequency: 50-60hz
Working Temperature: -20 to +70 ℃
MCBF: 5,000,000 cycles

Dry Contact Pedestrian Flap Turnstile Gate Access Control Sliding Gate 0Dry Contact Pedestrian Flap Turnstile Gate Access Control Sliding Gate 1


1. How about the quality of your products? We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
2. How about the payment method? Standard products: 30% deposit, 70% balance payment before shipment.
3. How long is your warranty period? One-year guarantee & Life-time technology support.
