Amusement Parks High Security Turnstile Gate With Fingerprint Scanner

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number G535
Minimum Order Quantity 1 PC
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Type Full Height Turnstile Size 2400*1500*2310mm
Pass Width ≤650mm Material 304 Stainless Steel
Reliability 3 Million ,no Fault For The Machine Core Environment Temperature Minus 25 Degree To 70 Degree
Transit Speed 30 Persons / Min Unlock Time 0.2s
Input 220V ,50Hz Net Weight 210kg
Package Wooden Case Package
High Light

automatic access control system

,

turnstyle automatic gates

Leave a Message
Product Description

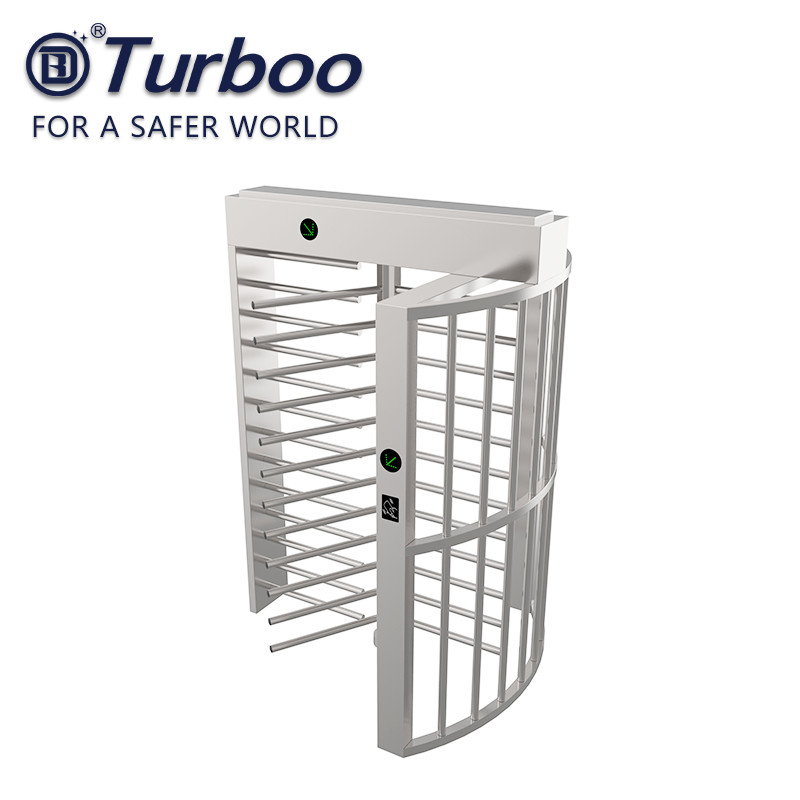

Full height turnstile G535 made of 304 stainless steel with fingerprint scanner





Features and Benefits

1. Bi-directional anti-rotation function.

2. Fire-fighting linkage to automatically open the turnstile in case of abnormality and emergency to facilitate personnel evacuation.

3. High channel closure and one card for one person to effectively prevent illegal climbing and drilling.

4. Button panel connected with control panel for easy and convenient setting of passage status.

5. Able to connect with various equipment such as access control system, consumption system, electronic ticket system, biometric identification system, electrostatic tester system, etc.

6. Enable remote control and management directly by supervisory computer.

7. Standard input/output interface to facilitate system integration.

8. Automatic unlocking under power failure and free rotation meeting the fire-fighting requirements, and with automatically closing after energizing.

9. Uni-directional or bi-directional control over personnel access.

10. Anti-collision function to lock the channel if turnstile does not receive the opening signal.

11. Thermostat and exhaust fan provided additionally to adapt extreme environment.

12. Automatic recovery function to recover the turnstile rod to its original status after pedestrian pass.



OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.



Technical Data Unit G535
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 2400X1500X2310
Net weight including bars Kg 360
