| Brand Name: | Turboo |
| Model Number: | G535 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, L/C |

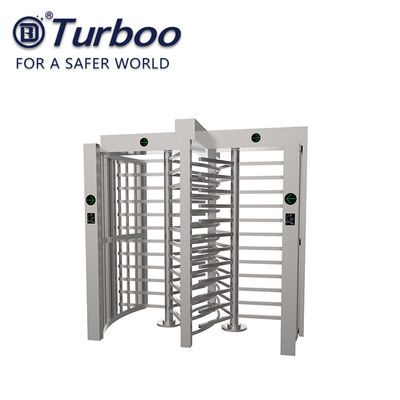

Stainless Steel Turnstiles Access control full height turnstile for aiport office building lobby and prison
Features and Benefits
• Use of RFID IC cards, ID cards, Barcode or magnetic cards as automatic identification system and achieve access attendance, fees or function.
• A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
• Semi-auto mode: After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
• Pure mechanical mode: The passenger pushes the arm by hand until he goes through the barriers.
• Single or bi-directional function in mechanical and electrical versions.
• Automatic reset of barrier arms after each passage.
• Adjustable time out delay.
OPERATING MODES
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
MATERIALS
• Housing: In stainless steel AISI 304 or AISI316.
• Barrier arm- stainless steel bar.
| Technical Data | Unit | G535 |
| Passage width | mm | <650 |
| Throughput rate | p/m | 30 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +70 |
| Dimension excluding bars | mm | 1500X1630X2310 |
| Net weight including bars | Kg | 210 |
