304 stainless steel dual lane full body turnstile gate with 120 degree revolving

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number G535-2
Minimum Order Quantity 1 unit
Price Negotiate
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 2000 units per month
Product Details
Type Full Height Turnstile Model G535-2
Size 1635*1500*2310mm Pass Width ≤550mm
Material 304 Stainless Steel Reliability 3 Million ,no Fault For The Machine Core
Environment Temperature Minus 25 Degree To 70 Degree Transit Speed 30 Persons / Min
Unlock Time 0.2s Input 220V ,50Hz
Net Weight 210kg Package Wooden Case Package
Warrenty 1 Years
High Light

automatic access control system


turnstyle automatic gates

Leave a Message
Product Description

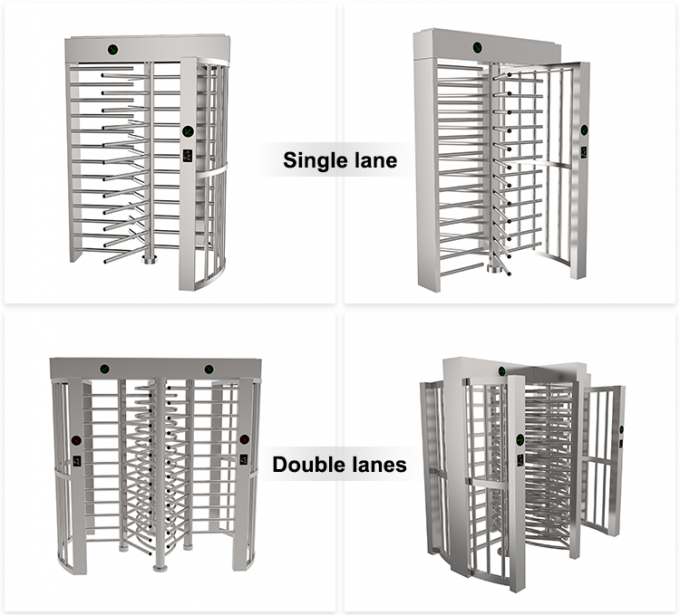

304 stainless steel dual lane full body turnstile gate with 120 degree revolving


Full height turnstile provide bi-direction access control and reduce the monitoring staffs needed, they could also provide valuable visitors' data for managers for suiveillance.This is designed to provide unsupervised access control for office or building. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the SEWO-100, the user must present a valid card for the access control system. Upon presentation of the valid card. the SEWO-100 will unlock and allow the user to pass through the direction requested. The turnstile can also work with push button, finger print and face recognition access control system.

This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card, barcode, RFID cards integrated .This system provides civilized, well-organized pass management .

Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free enter/exit working mode when power off.


304 stainless steel dual lane full body turnstile gate with 120 degree revolving 0

Features and Benefits

 1. Fault self checking and alarm function,easy to maintenance and use;

 2. Pass through when power off , locks automatic when power-on,

3. It is convenient to quickly organize evacuation in case of emergency;

4. When the read valid card after pedestrian access only to gently push the turnstiles, after each push of the lever is rotated 90 degrees or 120 degrees automatically reset, the door is in a closed state;

5. With automatic reset function. When the card reader, people does not pass in predetermined time, the system will automatically lock, and the passage time limit set by the owner.

6. Using a unique transmission system, so that the gate in the zero lock, unlock more accurate and reliable;

7. With a unified standard interfaces, can contact with a variety of equipment, easy for system integration, computer can remote control and management .

8. With multiple operating modes to choose from, bi-directional or one-way.

9. Can automatically access the direction of the prevailing number of statistics, and LED show the info(optional) is presented to the managers.

10. With a clear direction indicator, show can pass or no thoroughfare.

304 stainless steel dual lane full body turnstile gate with 120 degree revolving 1



• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.


Technical Data Unit G535
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1500X1635X2310
Net weight including bars Kg 210

304 stainless steel dual lane full body turnstile gate with 120 degree revolving 2
