High Speed Turnstile Gate Security Systems Built In Unique Fire Control Interface

Place of Origin Shenzhen, China
Brand Name Turboo
Certification CE, ISO9001
Model Number G535
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Wooden case package
Delivery Time 7-15 working days
Payment Terms T/T, L/C
Supply Ability 1000 units per month
Product Details
Type Full Height Turnstile Pass Width ≤700mm
Material 304 Stainless Steel Reliability 3 Million ,no Fault For The Machine Core
Environment Temperature Minus 25 Degree To 70 Degree Transit Speed 30 Persons / Min
Unlock Time 0.2s Input 220V ,50Hz
Net Weight 210kg Package Wooden Case Package
High Light

automatic access control system

,

mechanical swing gate

,

High Speed Turnstile Gate

Leave a Message
Product Description

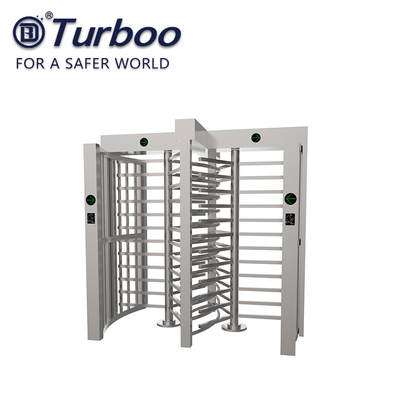

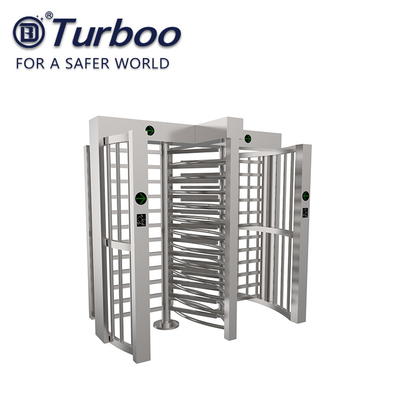

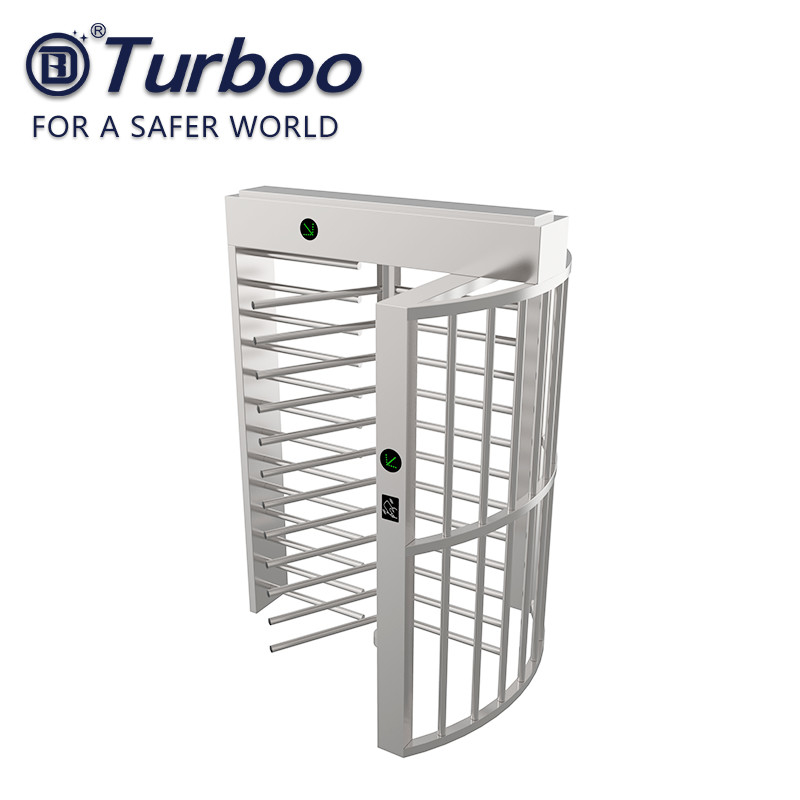

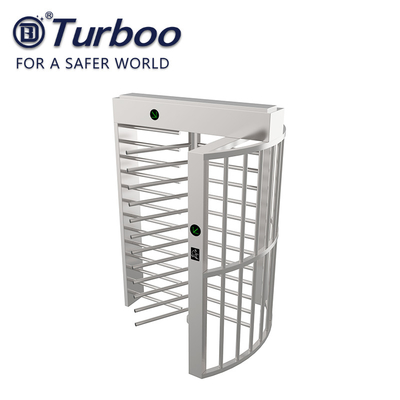

Full Height Turnstile With CE Mark for High Speed Barrier Gate





Features and Benefits



1. Rainproof housing, anti-corrosion coating iron or #304 stainless steel

2. CNC stamping and laser drilling, presenting a novel and elegant appearance 3. Innovative and unique mounting surface ensures simple and convenient installation for system integrators;

4. Direction can be set as single-direction or bi-direction

5. Direction indicator

6. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)

7. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically;

8. With backup battery, complying with fire safety requirements.

9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

10. Dual-bearing device, keeping the gate in balance when there is external force



OPERATING MODES



• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



MATERIALS



• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.



Technical Data Unit G535
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 1500X1630X2320
Net weight including bars Kg 210
