RFID Facial Recognition Pedestrian Full Height Turnstile SUS304 Access Control Full Height Gate 24V Full Height Gate

Place of Origin Guangdong
Brand Name Turboo
Certification CE
Model Number G538
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden box
Delivery Time 7-10 days
Payment Terms L/C, T/T
Supply Ability 1000 units per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Size 2100*1500*2310mm Pass Width 550mm
Net Weight 240kg Thickness 1.5mm
Material: SUS304 Operating Temperature: -25 To +70
Pass Rate 35p/m Power Supply 100-240V(AC)
Operational Voltage 24V(DC) Max Power Consumption 50w
High Light

automatic access control system

,

turnstyle automatic gates

,

24V Full Height Turnstile

Leave a Message
Product Description

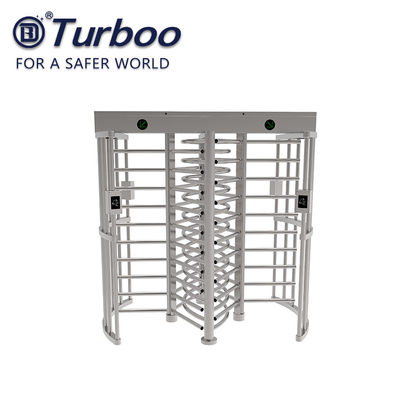

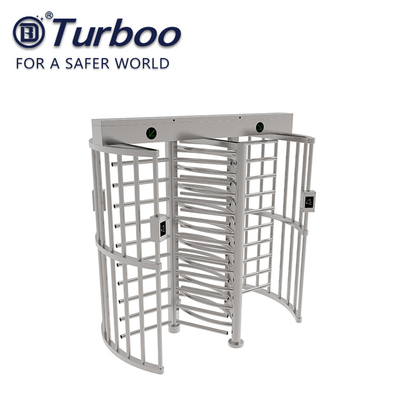

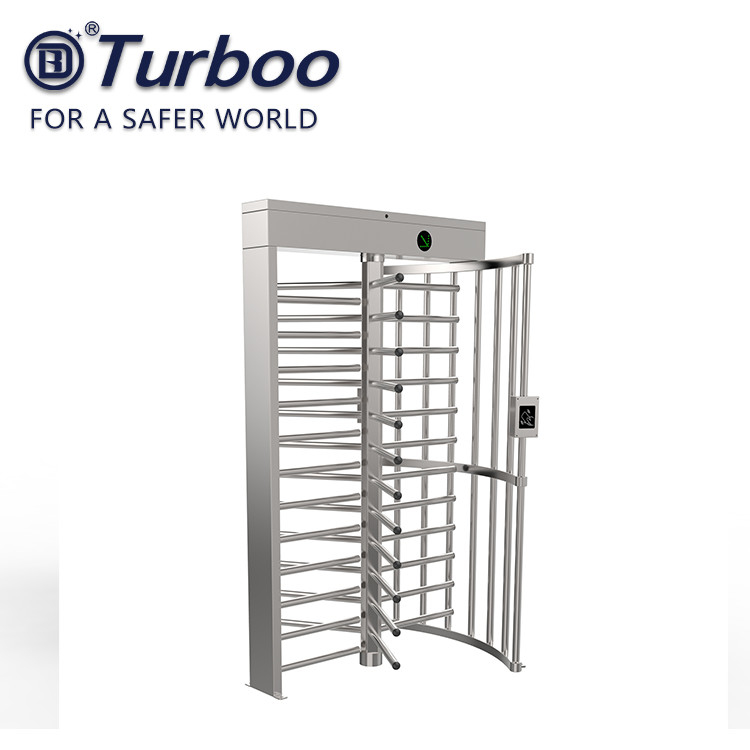

RFID Facial Recognition Pedestrian Full Height Turnstile SUS304 Access Control Full Height Gate 24V Full Height Gate





This Automatic intelligent full height turnstile is designed to provide unsupervised access control for office or building. The impenetrable construction eliminates any unauthorized access to restricted areas. To gain authorized passage through the the user must present a valid card for the access control system. Upon presentation of the valid card. It will unlock and allow the user to pass through the direction requested. The turnstile can also work with push button, finger print and face recognition access control system.



Features and Benefits

1. Pass prompt, booster rotation
2. Mooth running and no noise
3. Free passing setting
4. Buffering and anti collision, anti reverse passing,Anti-follow, auto reset function.
5. Uni-directional and Bi-directional pass modes for optional
6. Adopt optical working principle. Absolutely assure one card for one passing.
7. Full height Turnstile with failure self-checking and alarm functions.so it is convenient operation and maintenance.
8. Can be connected with any control device and receive the output control signal ,can be controlled by external button or remote control.
9. Door opens automatically when power off to meet the fire safety management
10. Memory function:accurate signal memory, continuous to receive many times the legitimate signal, door will automatic reset after the last man passed, greatly improve the speed of passing.
11. Normal open and normal close, automatic revolving door can be also controlled via external button.



OPERATING MODES

• Single passage in the set direction

• Bi-directional single passage

• Free passage in the set direction

• Always free or locked



MATERIALS

• Housing: In stainless steel AISI 304 or AISI316.

• Barrier arm- stainless steel bar.



Technical Data Unit G538
Passage width mm <650
Throughput rate p/m 30
Power supply V(ac) 100-240
Operational voltage V(dc) 24
Max power consumption w 30
Frequency hz 50-60
prectection level ip >44
Working temperature degree -25 to +70
Dimension excluding bars mm 2100X1500X2350
Net weight including bars Kg 240
