| Brand Name: | Turboo |
| Model Number: | G536 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Delivery Time: | 7-15 working days |
| Payment Terms: | T/T, L/C |

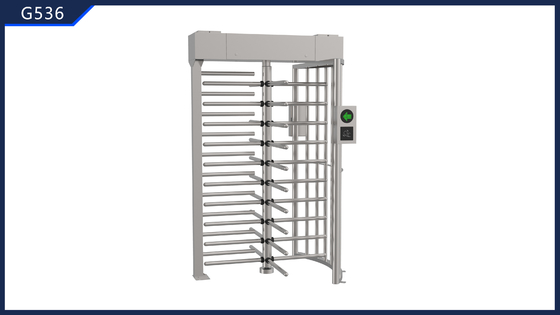

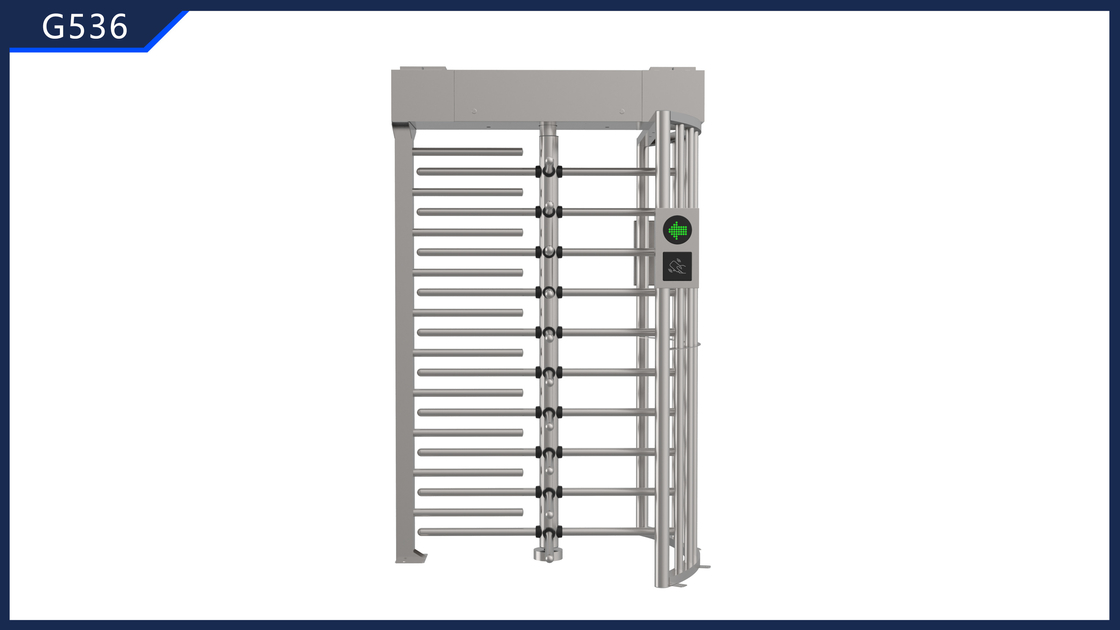

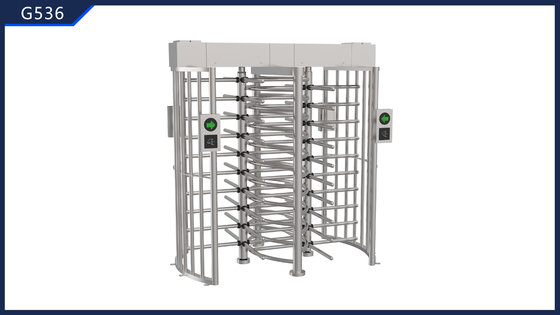

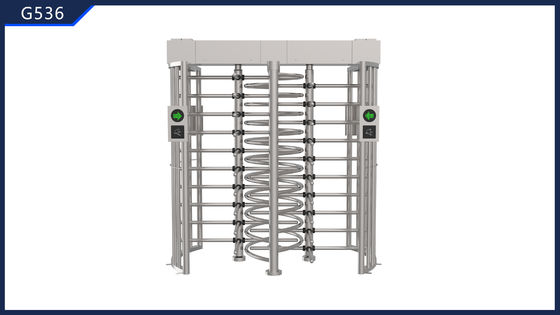

CE approved factory made turnstile gate for full height turnstile price
Functions & Features
1) Automatically low noise mechanism core equipped, highly cost-performance
2) Sense positioning, reducing mechanical impact make lifetime longer
3) Operating efficiency, 1~2 seconds open & close
4) Lowest Noise : No matter in operating or outside control, Noise control under 30db
5) Self-checking and Alarm warning for maintain
6) Resetting: System cancel authorized pass if passenger delayed pass
7)Anti-following : prevent illegal passing
8)Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay
9) The rotary wings will be locked automatically if the system do not receive IR signal
10) Multi-passage for variety application demands , cover 99% needs on earth
11) Programmable signal separate control : pass time,pass speed etc. parameter
OPERATING MODES
• Single passage in the set direction
• Bi-directional single passage
• Free passage in the set direction
• Always free or locked
MATERIALS
• Housing: In stainless steel AISI 304 or AISI316.
• Barrier arm- stainless steel bar.
| Technical Data | Unit | G536 |
| Passage width | mm | 550 |
| Throughput rate | p/m | 35 |
| Power supply | V(ac) | 100-240 |
| Operational voltage | V(dc) | 24 |
| Max power consumption | w | 30 |
| Frequency | hz | 50-60 |
| prectection level | ip | >44 |
| Working temperature | degree | -25 to +75 |
| Dimension excluding bars | mm | 1400X1200X2250 |
| Net weight including bars | Kg | 90 |
Project Cases
Video
Video
Video
Video
Video
|
